Pin code calculator latest PSA IMMO Tool for Peugeot and for Citroen from 2001 to 2018

Newest PIN CALCULATOR and IMMO EMULATOR







PSA IMMO Tool  with this tool, you will be able to extract the pin code from PSA engines

in for Peugeot and for Citroen cars from 2001 to today!



 if Locked10 displayed

1. power the unit - wait until the LOCKED10 displayed !!!

 The KP008 for Peugeot and for Citroen Pin Code  is a simple and easy device to extract the

pin code from a range of vehicles. It can read the pin code from the ECU memory of all Engine

Control Units, Sagem, Johnson Controls and Valeo BSI units



The device has two main functions :one is pin code calculation via obd, it intercepts the signal from bsi to ecu,

pin code from obd needs working key. Another function is the emulator programming this

allows you to enter the pincode into the emu to run the car without key.



The device has two modes of operation these are explained below :

Mode-1 Calculator: Connect the supplied OBD lead to car and select "Calculator" Then cycle the ignition 8 times.

Each time to cycle the ignition the counter will increase. On the 8th turn the calculator will start working.

Wait about 5 minutes and the security pin will be displayed on the screen.



Mode-2 Emulator: The Emulator function will just emulate a working key once the pin has been calculated.

This can be useful for diagnosing problems with the security system.



Not all cars can be done via the diagnostic port, some cars require the calculator to be connected to the

CAN H and L cables under the bonnet. Basically if a CAN H and L connection is available in the diagnostic

port then you will be able to use the calculator through the OBDII port, if not then it requires a direct connection.

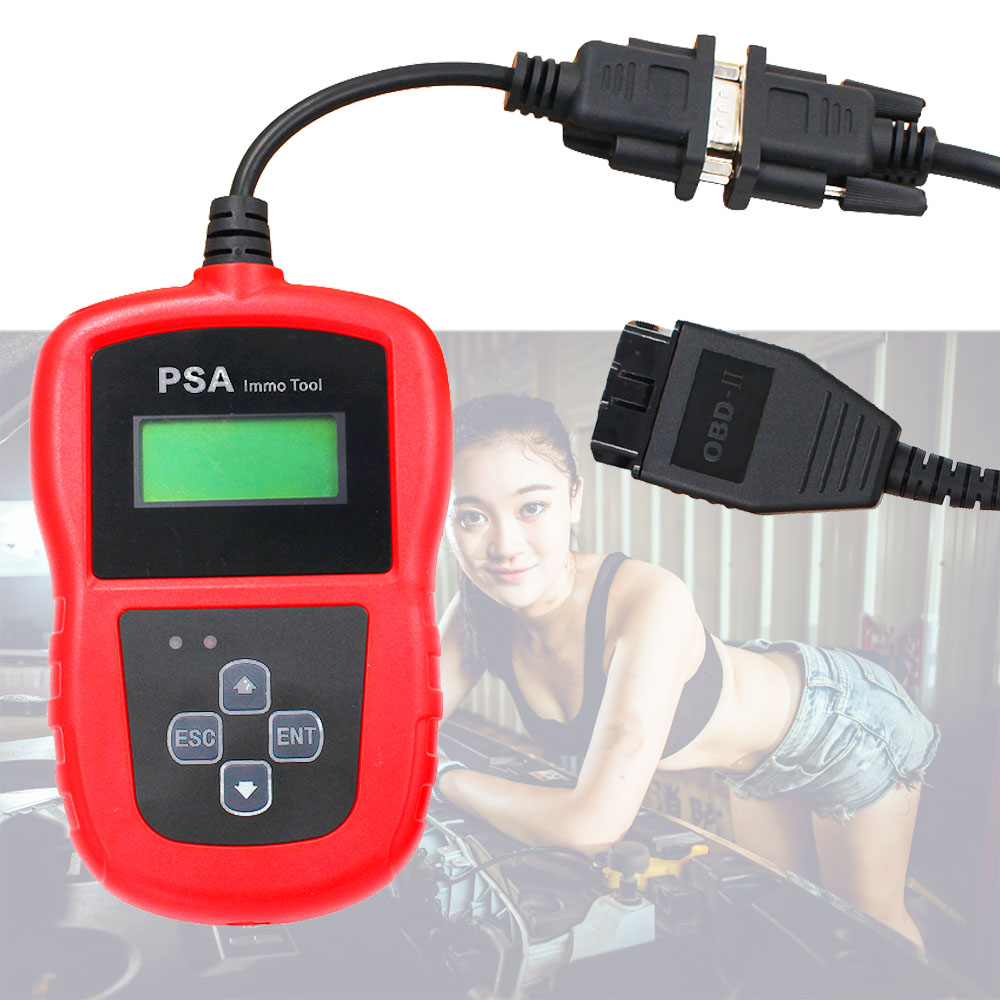

 The KP008 has a small backlit LCD display, small keypad to navigate the menu, a rear

magnet to aid testing and secure the device when working under the bonnet/hood, an OBD

Connector and cable and an additional cable/connectors for working with vehicles that do not

have CAN BUS located within the OBD Diagnostic connector.

Applications :-

The device can work on all Peugeot and Citroen based models from 2001 to 2015 as listed in

the applications guide on our web site. The applications are updated on a regular basis, so

please always refer to the latest version to ensure you have the up to date information before

you attempt to read the pin code.

The device works on vehicles from 2005/2006 using the OBD port if CAN bus is available at the

vehicle OBD connector, however for vehicles prior to this a direct connection can be made to

the engine ECU connector CAN wires to enable communication with the BSI immobiliser ECU.

The device will only work on Peugeot and Citroen derived models, and cannot read the pin

code on Fiat or Toyota derived models such as the 107, C1 and Scudo as examples.

The device is protected by international copyright laws and Patent Pending status for its unique

design and software





The calculator will work on cars from 2001 to the present day as long as its the ORIGINAL PSA engine type found in Peugeot and Citroen

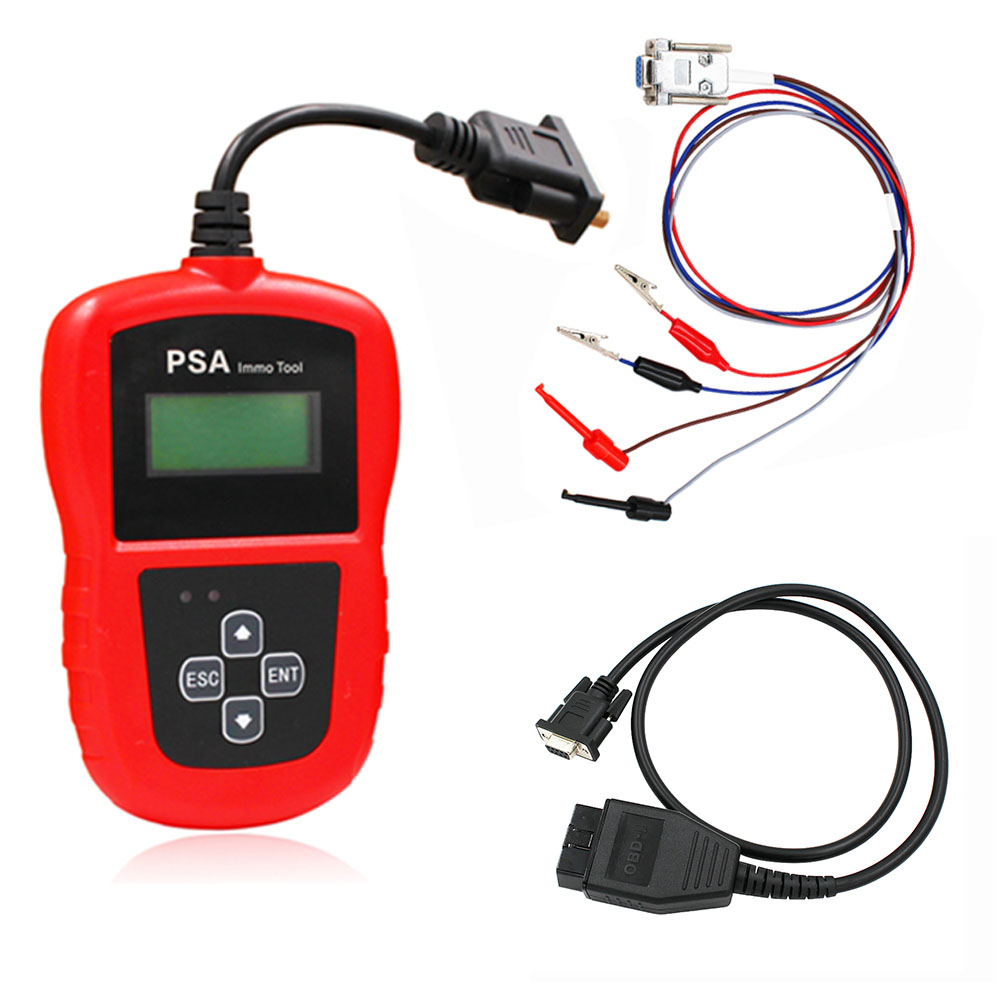

Package:

1 x Handholder

1 x OBDII Lead

1 x CAN connection cables
