Newest Remote Copier DigitalI Counter 10th Fixed/Rolling Code Copy 10TH generation

Note :

1,If you don't know how to make a new remote control, please contact customer service, directly to the bad review is not welcome,

also that cannot solve the problem!They will show the video to you by FACEBOOK or Whatsapp.

2, The user manual is Chinese/English , the part of Chinese says it supports which brand of China Entrance guard system,

operation steps in English.

3, It can't program car key!! Car keys is encrypted rolling code.

Updated version:Remote controller (remote master) for copy kinds of wireless RF remote controller!

Full computer remote control copying machine,Computer digital frequency meter,

Fixed code/Rolling code remote control regenerator

Radio frequency tester

Anti-theft remote copy machine

It's suitable for key & lock shop, locksmith, and car service shop!

I,C:

Model A:  1. HT-12E  2. AX5326-3  3. AX5326-4   4. AX5026   5. PT2262   6. PT2242   7. HT600  8. HT680   9. HT6207

10. HT6010   11. HT6012   12. HT6014  13. MC145026   14. HT640

Model C:  HCSXXX

Functions:

1. Frequency indicate (25MHz-1GMHz)

2. Data Detect

3. Duplicate /learn Fixed code remote

4. Duplicate /learn part of Rolling code remote

5. Duplicate /learn part of original car keys(For BYD F3/F0,SPEAK,UFO,GL8,Hover,Geely,JMC,Haima323,Vios,Elysee,Premacy……)

6. Compare data (frequency, data, etc.) between remotes after copy

7. Regenerate new remote control

8. Chinese/English bilingual support

Remote Master User Manual:

The remote master used to copy RC, working with remote control A, B, C three styles submachines.

The use method as belows:

1, Four copy styles as below

Turn on the power, press key5 2 times, interface shows "remot copy";

1) press key5 one time, shows "1.normal copy";

2) then press key3 one time, shows "2.Singkey copy";

3) continue to press key3 one time, shows  "3.MulFreq copy";

4) repeat last step, shows  "4.same SYS copy";

2, "Normal Copy"

When the interface shows "1.normal copy", then action as below

1) press key5 one time, shows "input 1key to", then press the original remote 1key one time, the machine sounds "bee" a time,

enter into code reading; then press key5 one time, shows "input 2key to", continue last step. Action as this to read all keys one by one;

2) When finished original remote code reading, press key5 two times, shows "input No.1 remote", means insert RC (remote control)

A, press key5 one time, then write the code infomation into new remote;

3) adjust frequency: back to interface "remot copy", press key4 one time to test frequency: put the original remote on

the machine and press any key one time, shows the frequency. Then put the RC A on the machine, press key1 one time,

use the non-inductive regulator action on the white capacitance to adjust frequency fit.

4) after adjust frequency, press key1 & key 2 at the same time (if the remote has 5keys, just need press key5 one time),

the light flash one time. When you press any key there is the light, means copy successfully finished.

3, Other copy method, please action as the indication in the machine.

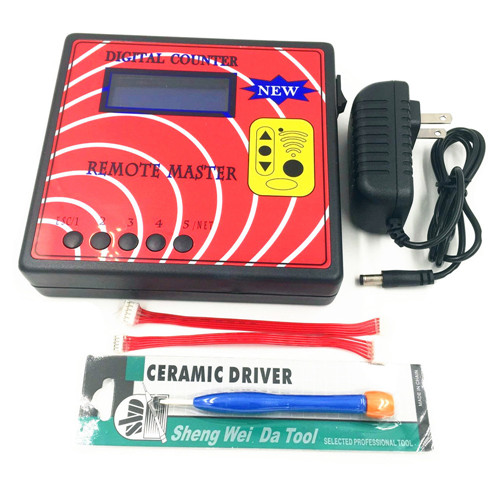

Package list:

1*Digital Counter Remote Master

1*power adapter

1*Capacitance pen

2*cable

1*English manual

1*Phone holder
