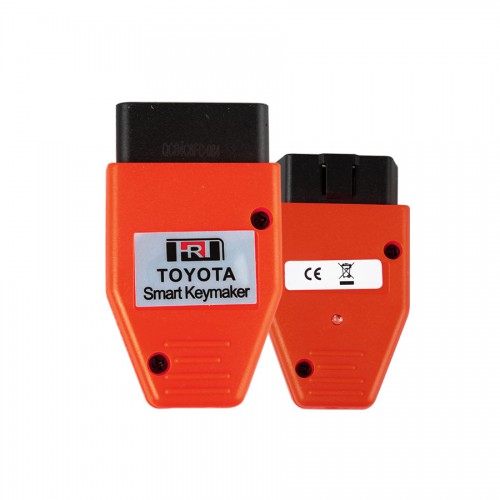

All in1 Programmer 4D CHIP Programmer Smart Key Maker Keymaker For Toyota for Lexus

Smart Key maker OBD For Toyota for 4D chip(Support for Toyota Lexus Smart Key)



support K line and CAN-BUS protocols.

It is a safe and fast key programmer fortoyota and lexus 4D chip.It can only work for 4D chip and smart key.

1.Safe and efficient: Only need 20 seconds to add one key

2.It is safe for the security alarm system

3.Support all kinds of for Toyota and Lexus smart key system: support K line and CAN-BUS protocols

4.It is the most safe and fast key programmer device forToyota and Lexus series till now.

5.It supports all key lost

6.Please read the operation instructions and important notice before making a key



Function:

1.Use the main key to add the other keys:

Connect the programmer to the OBD port of the car, there are some short beep sounds after power on,

it enters auto search car status.

Press the start button twice to wake up the anti-theft module. When the connection with the module is done successfully

after 7 seconds,

there is a long beep 4-5 sounds (4 sounds means the system is IV K system, 5 sounds means V CANBUS system).

Wait 30 seconds,

there are a long beep sounds, it means the car enter into add key state.



2.Add smart key:

put the original car key (with the logo side) access to the start button, you should hear two beep sounds. SEC light will flash twice;

within 5 seconds, put the key close to the start button, you should hear 2 beep sound, SEC light will flash twice;

after learn all the smart key,

wait 30 seconds till SEC light begin flash, and the car will close adaptation mode automatically.



3.All the key was lost or only have vice key, need to do initialization:

Press constantly the LED button, and plug into the OBD port of the car, after two short beep sounds, finish press,

it enters into auto search car status.

Press the start button twice, in order to wake the anti-theft computer. When the connection with the Computer of

car is done successfully after 7 seconds, there is a long beep 4-5 sound (4 sounds mean the system is IV K system,

5 sounds mean V CANBUS system), 5 seconds later, LED light go out. Wait 10-16 minutes,there are a long beep sounds,

and LED light flicker, it means the car enter into study key state.

All keys lost matching mode: Add every smart key which need to program(with the logo side)access to the start button,

meanwhile you will here two beep sound. SEC light will shine twice; After you finisher studying all the smart keys,

wait 30 seconds till SEC light shining, the system will Auto-close study state



Package list:

1 x for Toyota 4D Chip OBD2 Keymaker



Notice:

1.Must use the right new smart keymaker, and follow the right step above, otherwise you take the consequences.

2.If the device can not match the key, and LED light shining constantly, pls clear the error

code by using anti-theft system such as T300.

3.After finishing program keys, the key can strat but the SEC light is still turn on, maybe you use the vice key,

only main key can manually shut the study mode.

4.Don`t try to open the cover of programmer and dash board, otherwise you take the consequences.

5.This machine is only provided for the legal auto repair. Otherwise you will take the above consequences.



The Operating step as follows(read the using and the importance notice carefully)

1.   Turn the ignition with the right 4D chip key.

2.   Connect the programmer to the OBD port of the car, there are some short beep sounds after power on .

When the connection with the Computer of car is done successfully, there is a long beep sound in

3 seconds and the LED is on ,as well as the anti-light LEC, which means the car is in the key programmer state .

3.   Take away the programmer from OBD.

4.   Matches 2 PCS main key and 1 PC Vice-key to the IMMO computer .



Notice:2 new main key and 1 vice-key are needed to close the programmer procedure

a)   Close all the car door

b)   Insert the first new main key to the ignition for 5 seconds.

c)   Insert the other main key to the ignition for 5 seconds.

d)   Insert the vice-key to the ignition for 5 seconds.

e)   The new ignition key will be confirm by the new IMMO.



Only program 1 or 3 main keys to the IMMO computer (Manual close the mode after complete the programmer)

a)   Close all the car doors.

b)   Insert the new key for 5 seconds .

c)   Insert another new key for 5 seconds.

d)   Take out the key from ignition.

e)   Insert the first programmed main key ,and turn on the ignition for 5 times quickly, then take it out.

f)    The new ignition key will be confirmed by IMMO



Notice:

1.   Must use the right for Toyota 4D chip, otherwise you take the consequences.

2.   Don try open the cover of programmer and dash board.

3.   This machine is only provided for the legal auto repair.
