MC68HC11 Motorola 711 Programmer
Description:
Communication with PC via a serial port
Easy to use Windows 98/ME/XP software
In-circuit/On-board EEPROM programming
High Speed EEPROM Programming
CONFIG Register Programming
Pin tester in both operation modes
Target MCU baud rate auto detection
Onboard processor ATmega16 allow to Firmware Update to new versions
Two color LED indicates mode of operation, power supply status
Additional Items You'll Need to Use This Tool:
1. Host: A 32 Bit x86 based or Pentium PC with a free Com1-8 port or USB port
2. Power Supply: An 12 Volt / 500 mA
Supported Chip List:
MC68HC11 A8 (AB95T)
MC68HC11 A8 (C96N)
MC68HC11 A8 (D26E)
MC68HC11 E20(3E22B)
MC68HC11 E9 (1B60R)
MC68HC11 E9 (D82R)
MC68HC11 E9 (E22B)
MC68HC11 E9 (E28B)
MC68HC11 EA9(2D47J)
MC68HC11 F1 (2F37E)
MC68HC11 F1 (E87J)
MC68HC11 K1 (2D58N)
MC68HC11 K4 (1E62H)
MC68HC11 K4 (OE75J)
MC68HC11 KA4(1E59B)
MC68HC11 KS2(0H95B)
MC68HC11 KS4(0E57S)
MC68HC11 KS4(0F60M)
MC68HC11 P2 (2E74J)
MC68HC711 E20(1H19S)
MC68HC711 E9 (4K81H)
MC68HC711 E9 (5C47M)
MC68HC711 EA9(0D46J)
MC68HC711 K4 (K59D)
MC68HC711 PH8(0H30R)
MC68S711 E9 (5C47M)
XC68HC711 KS8(1H96P)
XC68HC711 P2 (1E53M)

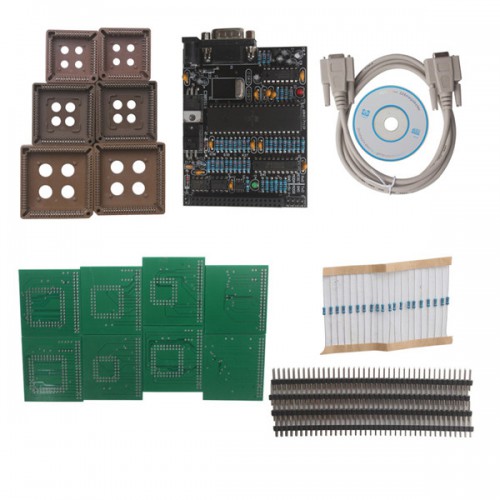

Package List:
1pc x 711 Programmer
1pc x 11EA9 PLCC-52 Adapter
1pc x 11E PLCC-52 Adapter
1pc x 11E QFP-64 Adapter
1pc x 11K PLCC-84 Adapter
