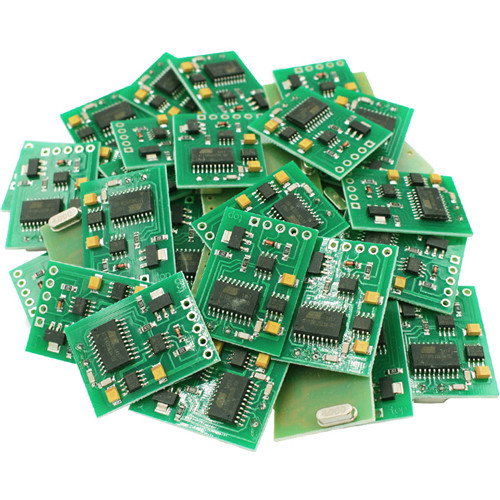

The emulator of an immobilizer for motorcycles and scooters Yamaha.

Works with all motorcycles and scooters Yamaha from 2006 to 2009.

Does not demand programmingonly need is connect wires.

Completely emulates work of a regular immobilizer, including light-emitting diode work on the instrument panel.

For emulator installation in the case of a regular immobilizer:

1. Remove glue hermetic from the immobilizer case.

2. Take out a PCB from immobilizer and desolder from it wires.

3. Connect the emulator according to drawing more low.

4. Insert the emulator into the immobilizer case.

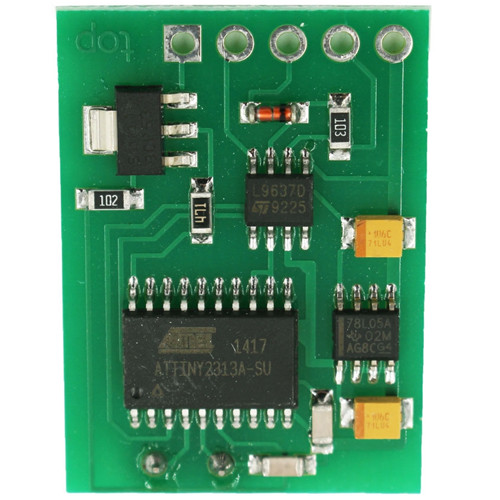

Connection diagram like in picture:

black wire -- emmu PIN1
black second wire -- emmu PIN1
yellow / blue wire -- emmu PIN2
red / green wire --- emmu PIN3
red / white wire -- emmu PIN4
green wire -- emmu PIN5

Colouring of wires and their appointment:

Black (2 pcs.)  GND

Red  BATT (+12v)

Yellow IGN (+12v)

Gray  LED (+5v)

Blue K-line Immo-ECU
